Ever since I returned from my Portuguese “vacation”(which was cut short by bureaucracy) I felt a bit empty and lost. So I thought what would be a better way of filling the void inside than to take a look at some malware samples. Because most people/companies are getting infected with Emotet trojan these days, I decided to take a look at an Emotet sample. This post is going to be more like a “technical report” and less like a tutorial because.. well I’m sad. Because Emotet is constantly evolving, the samples differ over short periods of time.

Emotet is a modular malware first identified in 2014 which acts as a dropper for other malwares (banking trojans like TrickBot, ransomware like Ryuk). It’s a highly versatile way for the bad guys to drop their malware onto the victim host. It is mainly distributed to the victims via e-mail. The infection vector is mostly a macro-enabled word document.

Summaries for the files that have been analyzed.

Below is the macro-enabled word document which contains the vba script that will launch the attack.(Screenshot by https://twitter.com/harunglec)

Technical Analysis

Below is the screenshot of the macro code extracted from the word document file. We can see typical malicious keywords/part of keywords are present which are autoopen and powe.

After making some adjustments to the script to print us the command instead of running it we are presented with a base64 encoded powershell command.

The result of the decoded code looks like this:

Which we can beautify into this (Thanks to https://twitter.com/harunglec again for the beautification):

We can clearly see that the code tries to contact domains such as hxxp://bazee365.com, hxxp://giancarloraso.com and a bunch of other IP adresses to pull randomly named files, save them to the C:\Users\<username>\ folder as 345.exe and run the downloaded file.

After 345.exe has been executed, it copies itself onto two seperate locations: C:\Windows\SysWOW64\radarneutral.exe and %TEMP%\7C91.tmp(will be deleted afterwards), deletes itself from the downloaded directory, creates a process named radarneutral.exe and a service named radarneutral with the binary execution path of C:\Windows\SysWOW64\radarneutral.exe and then proceeds to kill its process. Keep in my mind that the name radarneutral may change depending on the device that the malware was executed on.

(Don’t mind the “bandicam” logo this is what a broke analyst looks like)

Also it could be seen that malware tries to modify the registry to maintain its persistence and stay hidden as a legit windows service.

A few seconds after it was executed this sample tries to reach out to a few IP addresses.

Anti-Analysis Techniques

Emotet is known to have a bunch of anti-analysis techniques up its sleeve like dynamically resolved imports, encrypted strings, inter-segment jump method(I just made the name up. Hopefully it’s a thing). Emotet resolves its imports by hashing their ascii names with sdbm hash method and then comparing them to the predefined hash values.

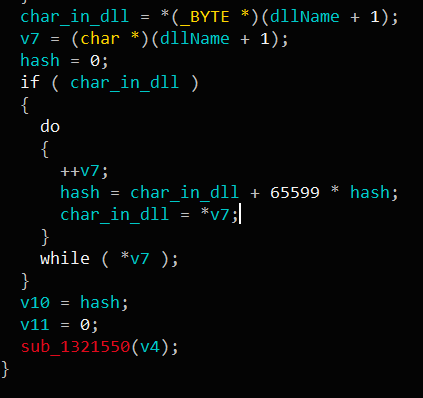

The hashing implementation:

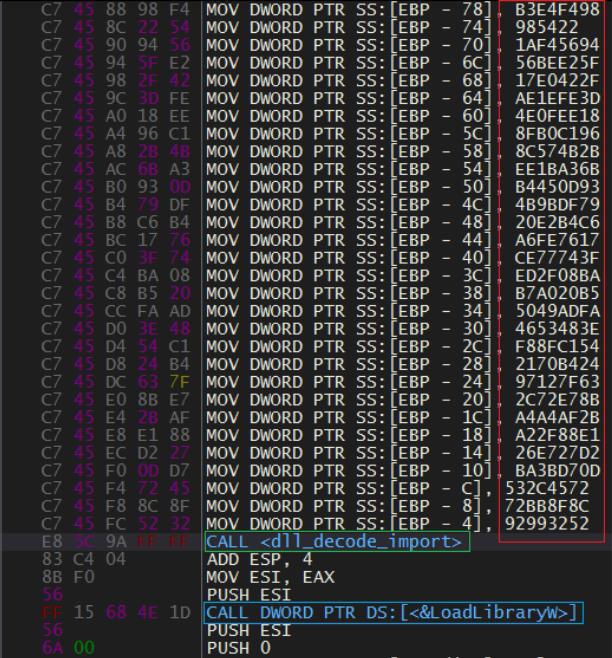

Dynamically resolved API calls:

After the unpacking procedure Emotet writes it’s unpacked code to 2 different sections. Then uses the assembly jmp instructions to jump between sections to execute the unpacked code so that disassembly tools like IDA won’t be able to generate graphs because of the external jmp instructions.(But it could be bypassed in this case since the jmp instruction simply acts as a nop on the most parts of the code). This method is designed to slow the static analysis down for the analysts.

The sample also has anti-debugging techniques which it achieves by using mutexes. It creates a mutex which has a format like PEM### (### is a 3 digit hex number which is a result of mathematical manipulation of the process ID) and checks if a mutex with the same name already exists. If it doesn’t, malware simply spawns a copy of itself and exits.

After that malware creates another mutex as an infection marker to prevent itself from reinfecting the host. The format of the mutex’s name is Global\\M<Volume serial number>.

File operations (deletion, copying) is done via an old Windows API call SHFileOperationW.

Partial C&C communication

My employer who also provided me with the sample was strict about the malware not making any connections to its C&C. Therefore the name “Partial C&C communication”. When infecting the host, malware gathers information on the infected host such as CPU information, Running process list, Volume serial number. After that it sends that information in an encrypted form over the network to one of the C&C addresses over the ports 995 53 443 8080. The encryption algorithm is AES_128_CBC. Malware sends the encrypted information on a HTTP request. The Cookie value in that request contains the AES 128 bit encryption key, hash value of the message body and the actual message. If the malware can not establish a successful TCP handshake with the C&C address it randomly chooses another one from its list and tries until a connection is established.

IOC list

Files

%SystemRoot%\SysWOW64\radarneutral.exe

%TEMP%\7C91.tmp

%APPDATA%\radarneutral\radarneutral.exe

%USERPROFILE%\345.exe

Registry

HKLM\SYSTEM\CurrentControlSet\services\radarneutral\

HKLM\SYSTEM\ControlSet001\services\radarneutral\

Mutex

PEM###

IESQMMUTEX_0_208

Global\\M<Volume_Serial_Number>

Global\\I<Volume_Serial_Number>

User agent

Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.1; WOW64; Trident/4.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0; .NET4.0C; .NET4.0E)

Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.1; WOW64; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0; .NET4.0C; .NET4.0E)

Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; WOW64; Trident/4.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0; .NET4.0C; .NET4.0E)

Hashes

e56a4d2452a1d2fd8840ce19428a00a3

92332eaa37f3fbd6891e3dce497e5602

f8f5a5dffa8d195b33113c79865b78e2

0761fd555be6344c3adf1d9509f147b566088d23

b4e2063862f1fb618162c58219964d1b0609cacc

b746082937e433dc668d800d7c41b3cee6aa0775

4e4ae10ef10ea6943f1b7365f42526036aa00f4bb349479ff18d781829829380

4b9905dadf4bb37fdca57b47c5ee0369405c8141b8e521bdd55da9a5349a328e

21463493562201a94f0c0f91e09aa68ac0f0d0b24c0d8e7f440a19ceed17d068

IP list

109.104.79.48

109.226.196.123

12.6.183.21

138.68.139.199

144.76.117.247

159.65.76.245

162.247.42.61

165.227.213.173

168.226.35.218

173.68.169.16

174.96.202.70

181.168.123.241

181.56.165.97

185.86.148.222

186.15.180.71

186.4.127.72

187.163.204.187

189.173.176.115

190.117.226.104

190.85.8.155

192.155.90.90

192.163.199.254

201.122.94.84

201.137.6.108

201.183.238.18

201.212.113.14

208.180.246.147

209.159.244.240

210.2.86.72

219.94.254.93

23.233.240.77

23.254.203.51

5.9.128.163

51.255.50.164

66.209.69.165

69.163.33.82

71.40.213.82

72.47.248.48

74.45.170.110

80.15.172.81

82.218.163.254

90.63.245.70

92.48.118.27

52.66.202.63

192.198.90.198

13.233.183.227

128.199.187.124

104.233.40.40

Malicious Domains

hxxp://bazee365.com

hxxp://giancarloraso.com
